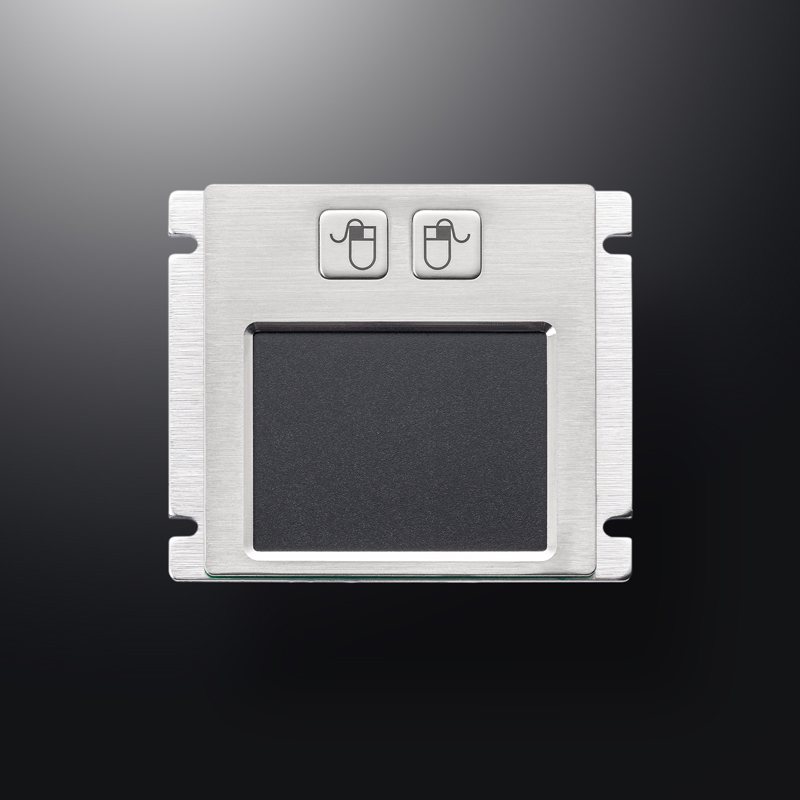

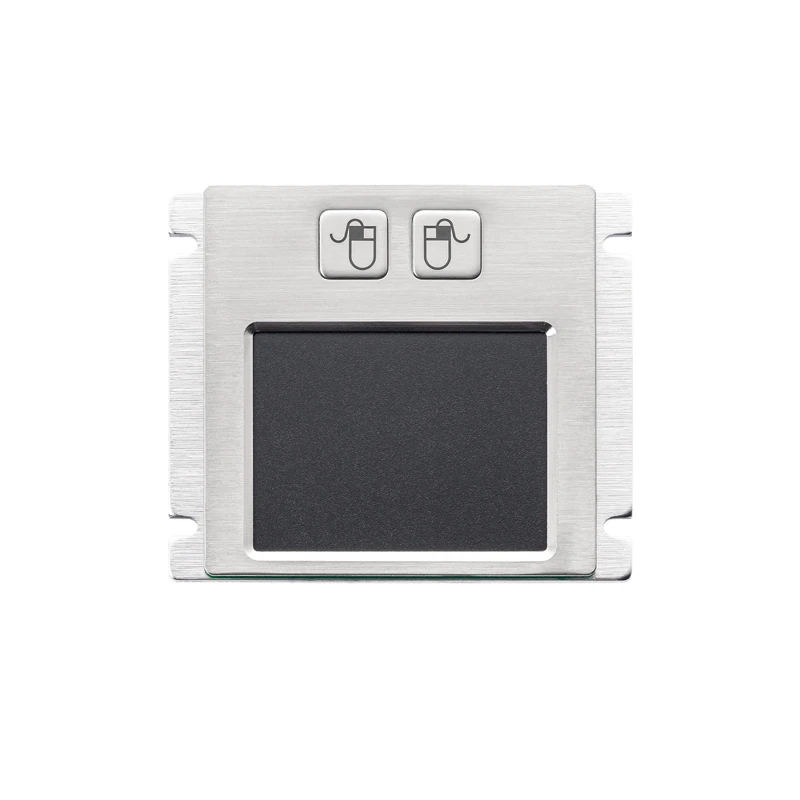

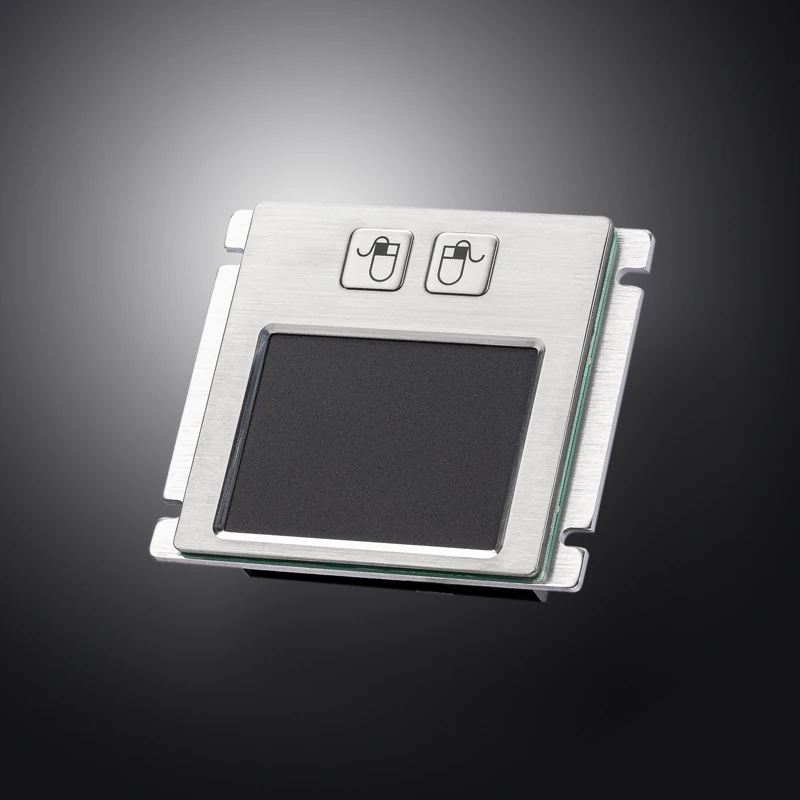

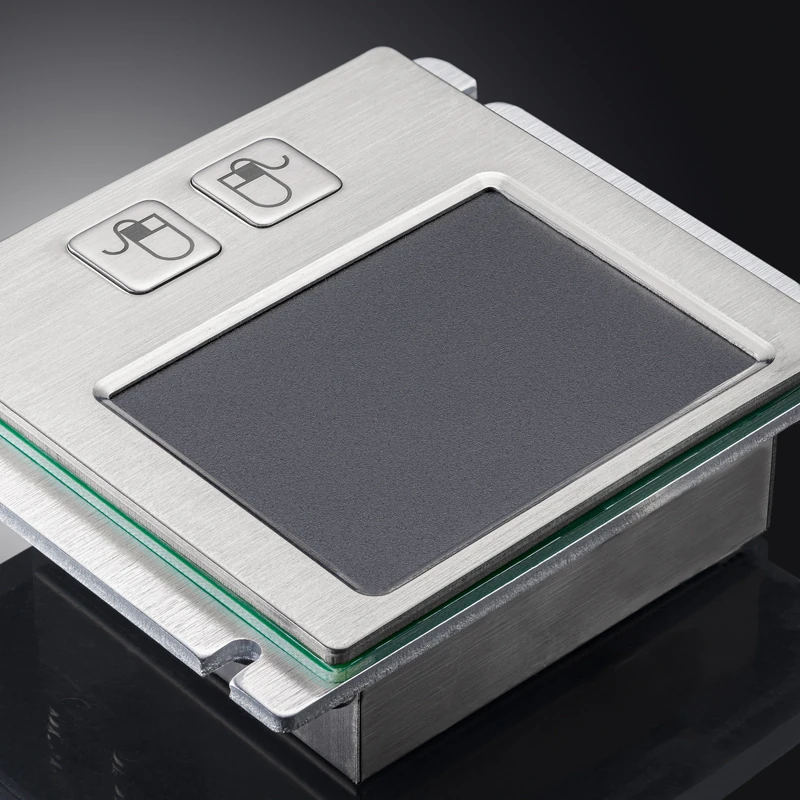

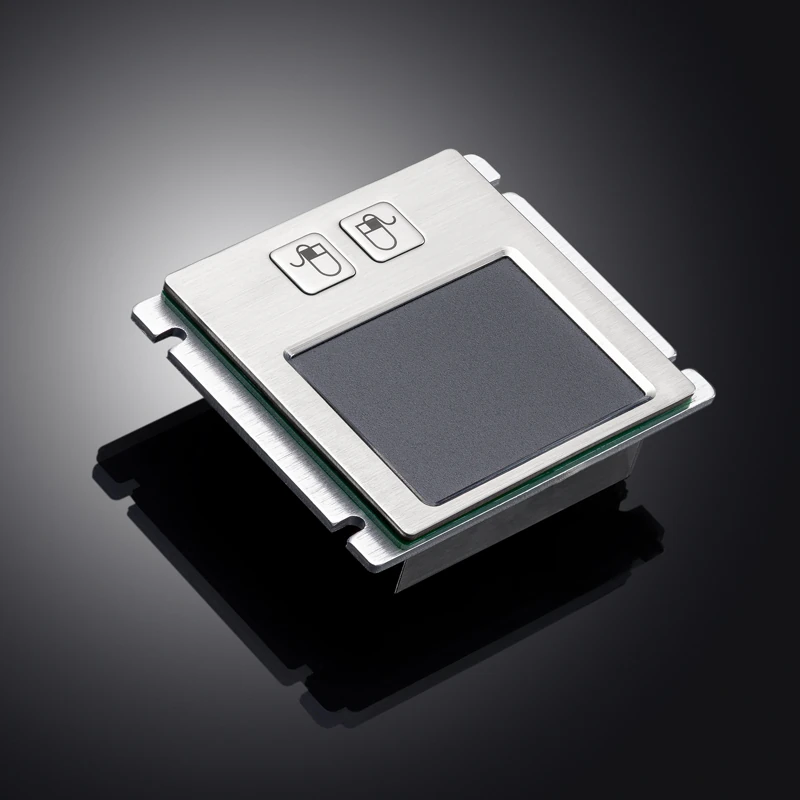

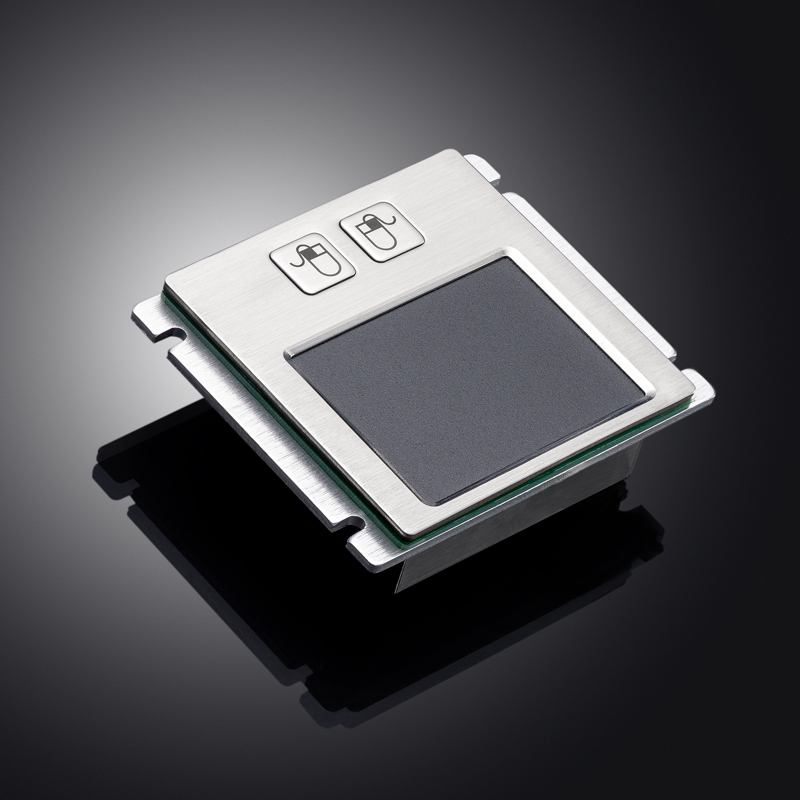

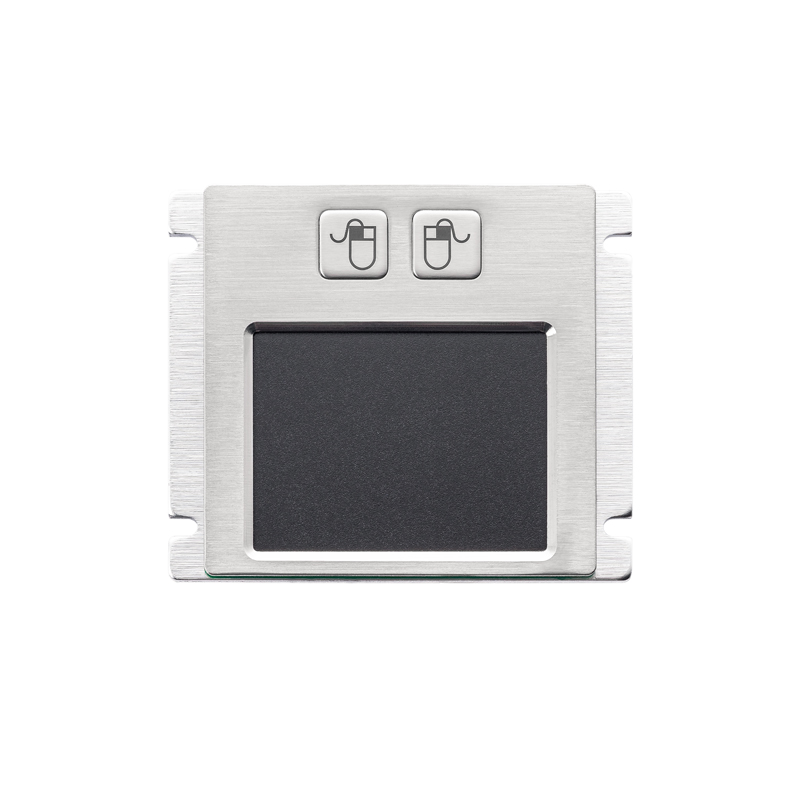

D-8402 Panel Mount Industrial Touchpad
Waterproof rugged industrial touchpad mouse with stainless steel panel mount. 2 laser-engraved mouse buttons, USB interface, 304 stainless steel front panel with IP65 protection, capacitive motion detection, rear panel mount, 80 × 80 mm.
- Quote-only industrial configuration
- Interface, mounting and layout customization available
- Engineering support for OEM and system integrator projects
Key Features
IP65 Waterproof
304 stainless steel front panel rated IP65 — water-resistant, weather-resistant, vandal resistant.
Capacitive Touchpad
Solid-state capacitive motion detection for precise, glove-friendly cursor control.
USB Interface
Plug-and-play USB connectivity (PS/2 and RS-232 optional).
2 Mouse Keys
Two laser-engraved mouse buttons with durable paint legends.
Wide Temperature Range
Operates from -40 to +70 °C, ideal for harsh and unheated environments.
Product Introduction
Waterproof rugged industrial touchpad mouse with stainless steel panel mount. 2 laser-engraved mouse buttons, USB interface, 304 stainless steel front panel with IP65 protection, capacitive motion detection, rear panel mount, 80 × 80 mm.
Specifications
| Model | D-8402 |
| Size | 80 × 80 mm (front panel) |
| Number of Keys | 2 keys |
| Material | Stainless steel (front panel) and alumina alloy |
| Key Travel | 0.4 mm |
| Key Switch Lifespan | More than 2 million operations |
| Keyswitch Technology | Silicone switching |
| Key Graphics | Laser-engraved legends & characters in a durable paint |

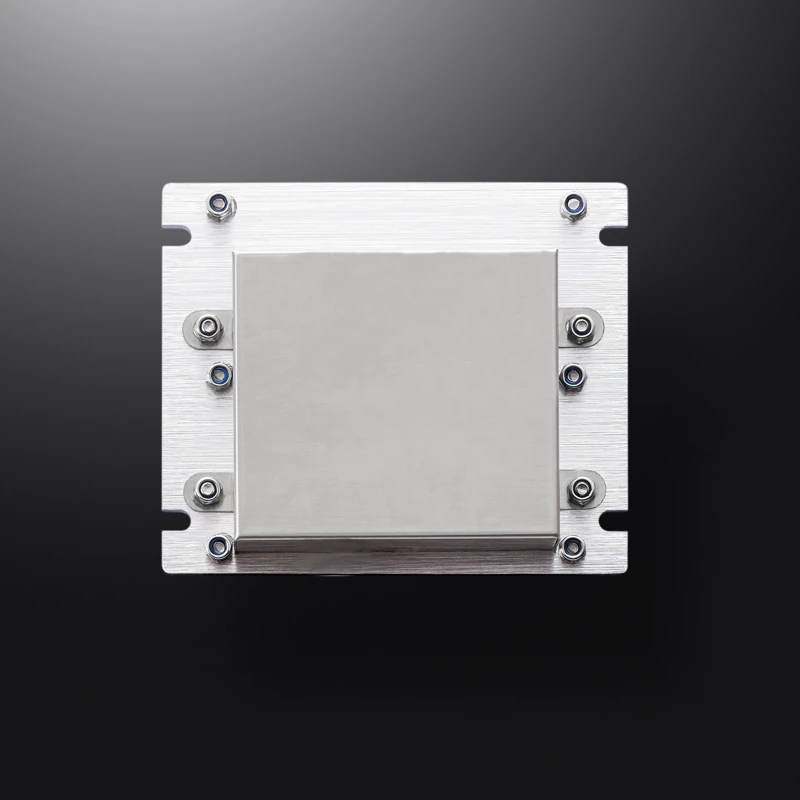

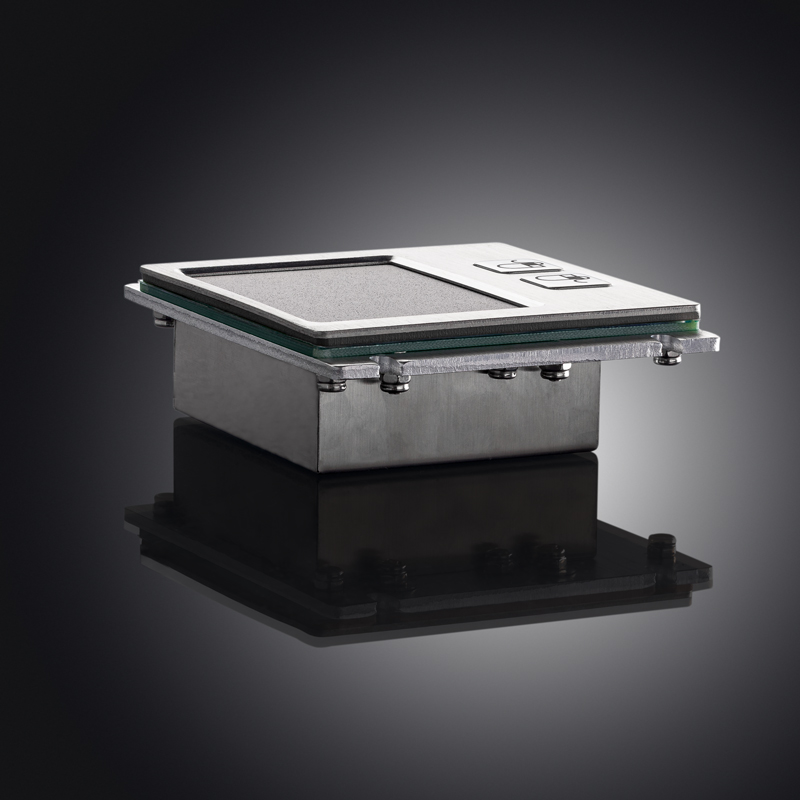

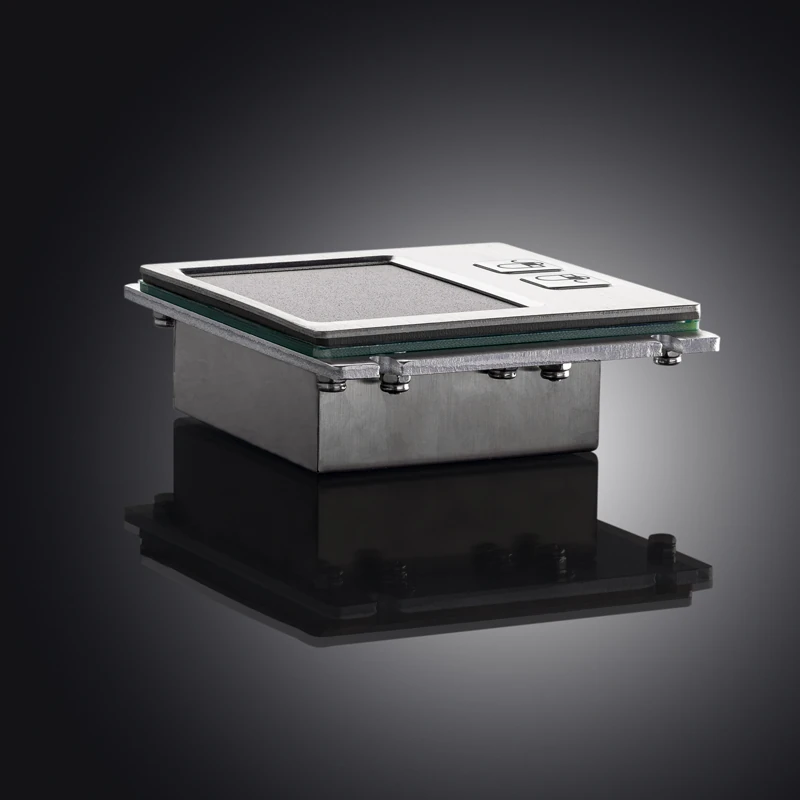

| Mounting Style | Rear panel mount |
| Supply Voltage | +5 V DC ±5% |
| Communication Interface | Matrix, USB or PS/2, RS-232 (optional) |
| Protection Level | IP65 (front panel) |
| Operating Temperature | -40 to +70 °C |
| Storage Temperature | -40 to +80 °C |
| Certifications | CE, FCC, RoHS Compliant |
| OS Support | DOS, Windows 95/98/NT/ME/2000/2003/XP/Vista/7/8/10, Linux, Mac, etc. |
| MTBF | > 20,000 hours |
| MTTR | < 30 min |
Video
Product video is being prepared. Contact DAVOLIN for operation videos, factory inspection videos or custom demonstration materials.
Application
Self-Service Kiosks
Unattended internet terminals and information kiosks in public areas.
Banking & Vending
Self-service terminals in banks, ticket vending machines and gas stations.
Industrial & Medical
Industrial PC systems, food processing, medical equipment, CNC machines.
