24/7 Outdoor Keypads
for Self-Service Locker Banks
Outdoor parcel lockers demand keyboards built for harsh-environment deployment. They need IP66 ingress protection, rugged durability, environmentally responsible materials, a wide operating-temperature range and a comfortable, responsive key feel.
ENGINEERING APPROACH
Solutions
Develop the keypad, display and electronics around the locker’s environment and controller. The Posti project documents a customized module for outdoor use in Finland.
01
Engineer for the specified cold conditions
Review the keypad and display as a complete module, then validate the selected configuration in a controlled cold test rather than assuming standard components will suit the site.
02
Match power and communication
Define the locker’s power budget and controller interface. The documented module combined low-power electronics, an OLED display and TTL communication.
03
Customize the user interface and panel
Coordinate multilingual interaction, stainless steel construction and panel dimensions with the locker enclosure and sealing requirements.
PROJECT EVIDENCE
Specific Case Studies
FIELD NOTES / 01
Self-Service & Smart Lockers · Documented Posti project

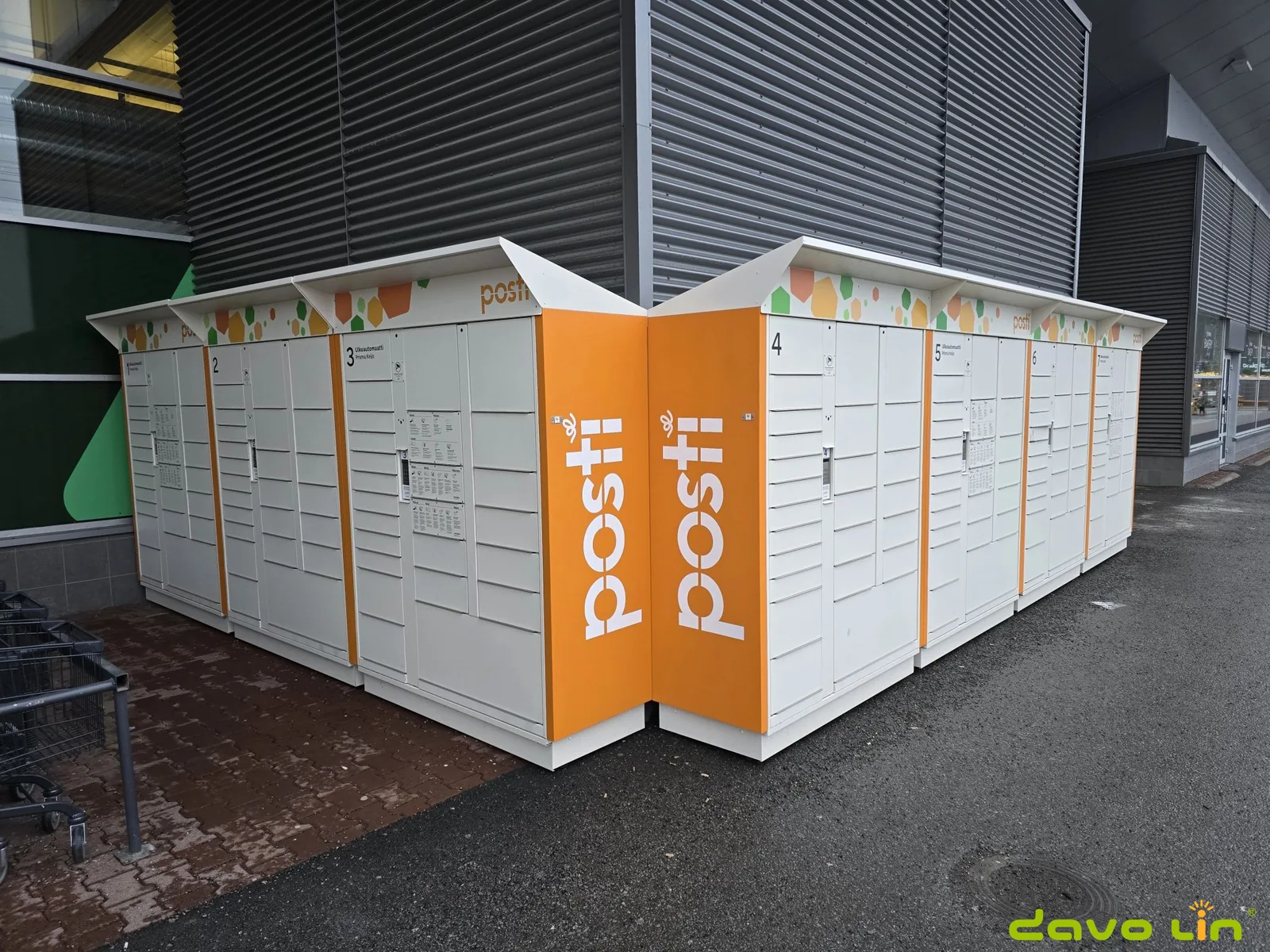

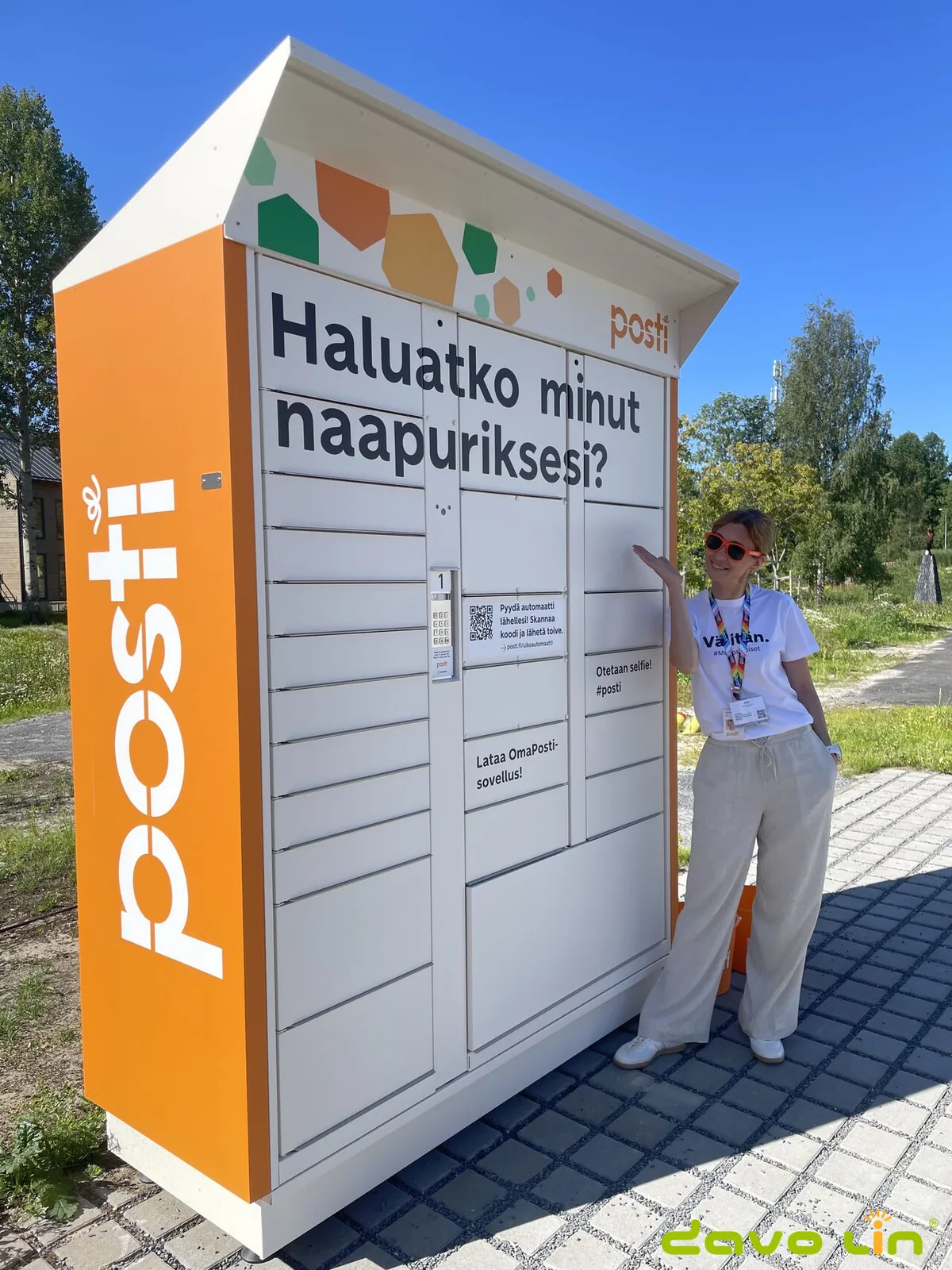

Low-Temperature Keypad and OLED Module for Posti Parcel Lockers
Challenge. Posti’s outdoor lockers required low-temperature operation, low available power, multilingual interaction and a compact sealed input module for Finland’s winter conditions.

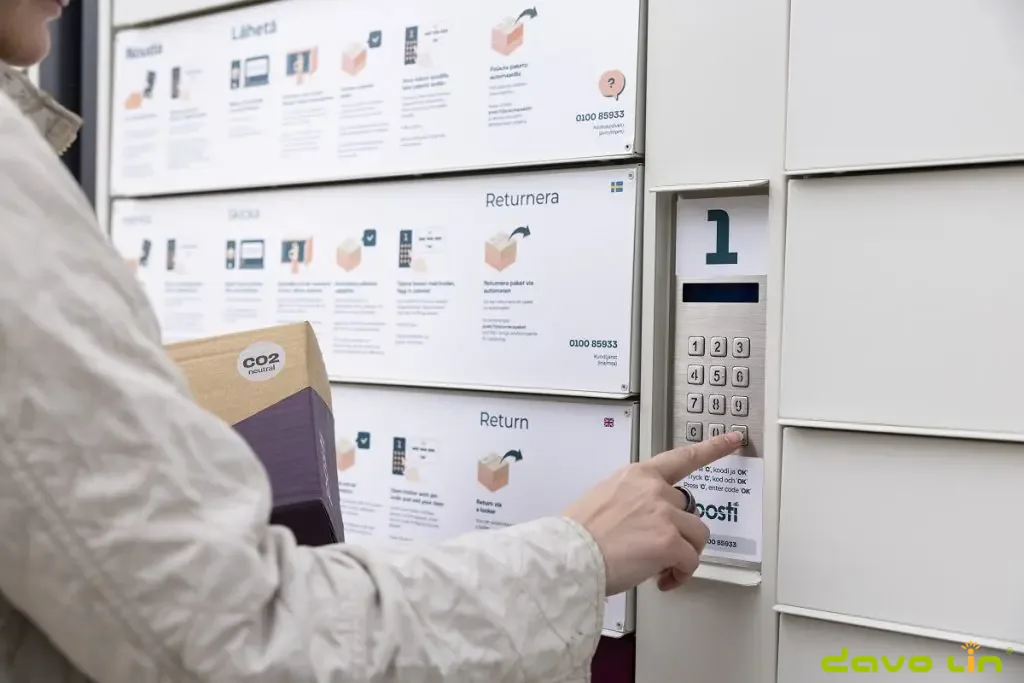

Solution. DAVOLIN developed the D-87161 stainless steel keypad module with an OLED display and TTL interface, matching the panel and electronics to the locker.
Result. The module remained functional after a 16-hour test at −40°C. Posti confirmed an initial 215-unit order and began installation in June 2021, with procurement continuing in subsequent years.
Evidence boundary. These test conditions and order details belong to the documented Posti configuration; they are not blanket performance guarantees for every locker keypad.
Recommended Products for Parcel Lockers

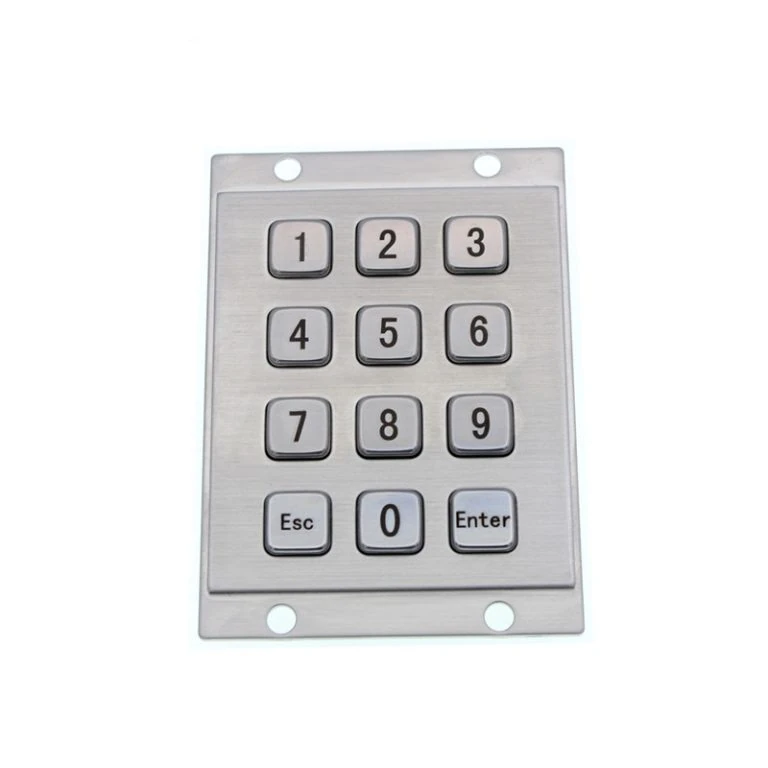

D-8208A Panel Mount Stainless Steel Keypad

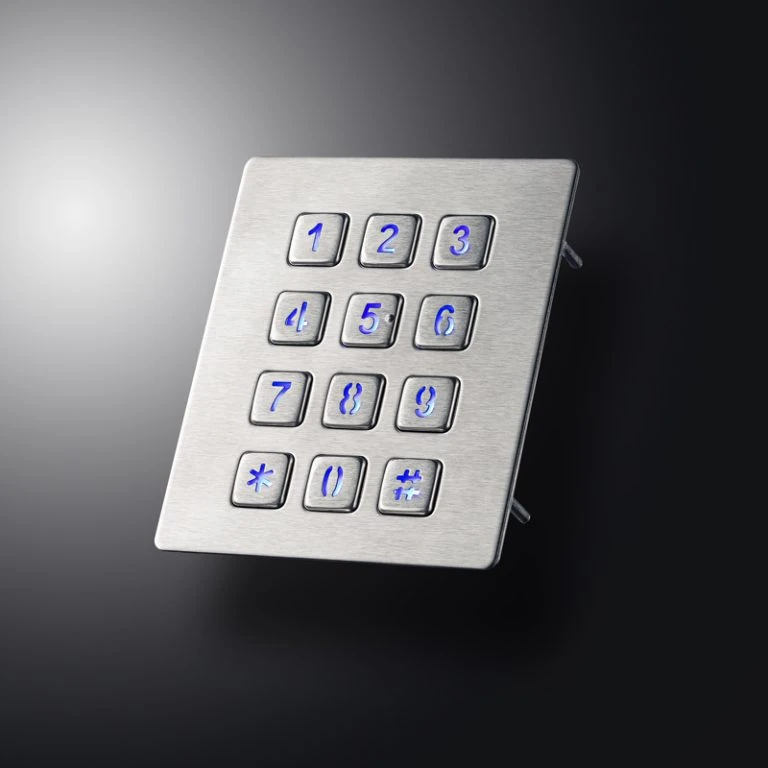

D-8208J Panel Mount Stainless Steel Keypad

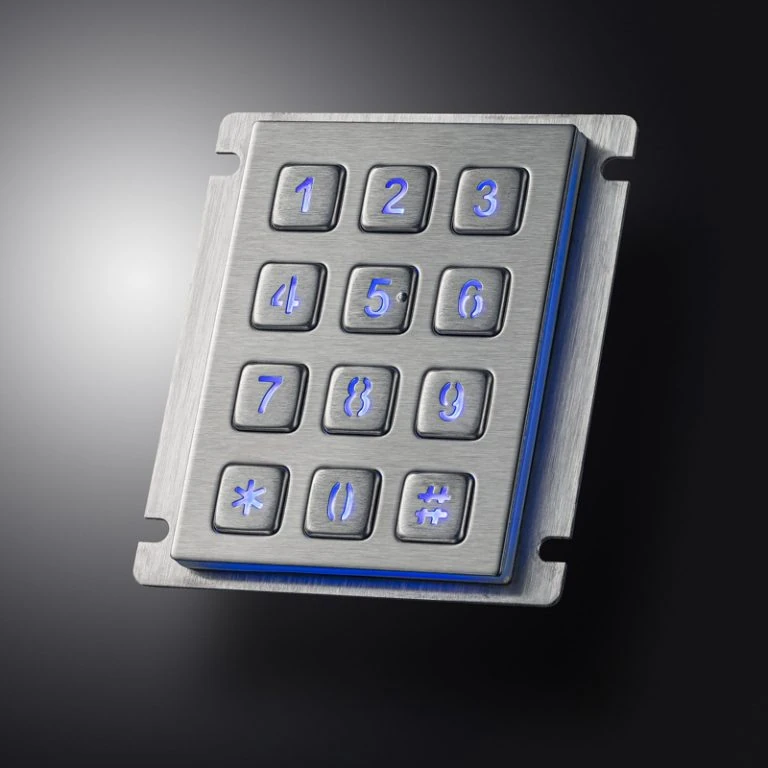

D-8208J-1 Panel Mount Stainless Steel Keypad
Spec’ing a Locker Bank or Self-Service Network?
Send your panel cut-out, interface, ambient envelope and quantity forecast. Our locker-team engineers respond within 24 hours.
Talk to a Locker Engineer
