| Number of Keys | 104+3 keys |
|---|---|
| Key travel | 1.5MM |
| Key switch lifespan | More than 2 million operations |
| Key graphics | laser-engraved legends & characters in a durable paint |
Supply Voltage: +5V DC +/-5%
Current Rating: 30mA
Operating temperature: -40 ~+70
Storage temperature: -50 ~ +80
Certificate:CE,FCC,RoHS,ISO9001 Compliant
OS support: DOS/Windows95/98/NT/ME/2000/2003/XP/Vista/7,8,10,11 Linux, Mac,etc
MTBF: >20000H
MTTR: <30min
APPLICATION: Self-service kiosk, Industrial PC system, Medical & Food industry, CNC machine & Vending Machine.
All language and layout is available.
There are other size of keyboards,you can leave me a message for more information.We accept customization of products to suit your requirements.

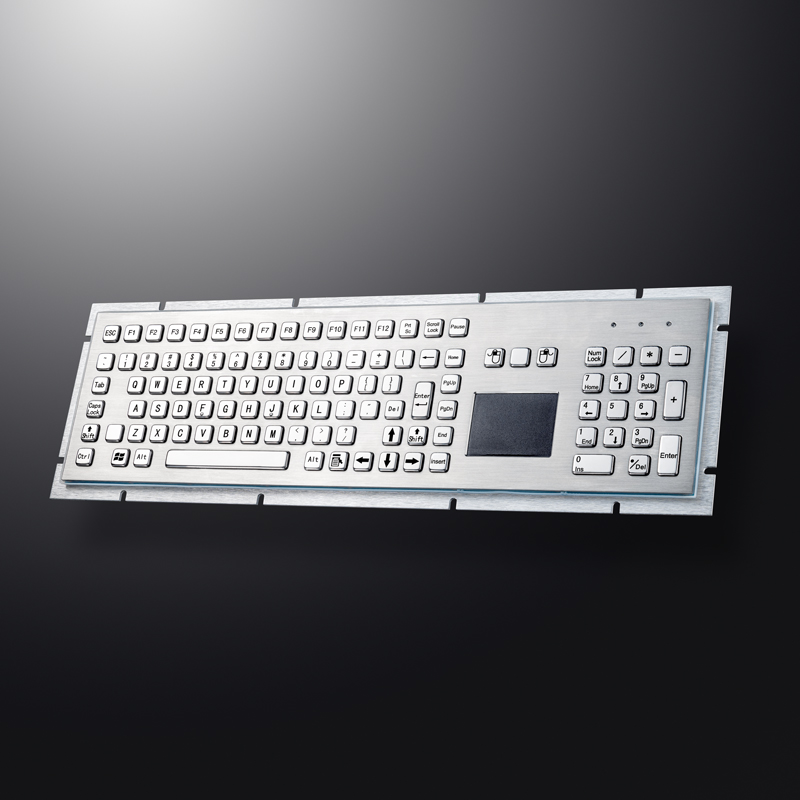

Model D-8605T
Size 478*135(front panel)
Material Stainless steel (front panel) and alumina alloy (scaleboard)
Keyswitch technology Silicone switching
Mounting style Rack mount
Communication Interface USB or PS2 (optional)
Protection Level IP65(front panel)
Motion Detection Method Capacitive
Resolution 40 counts / mm
